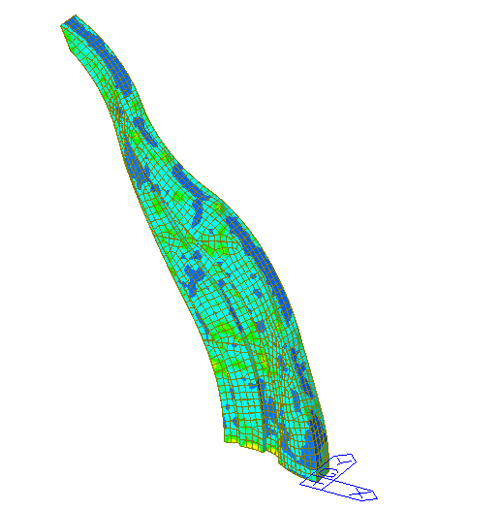

Stress Review

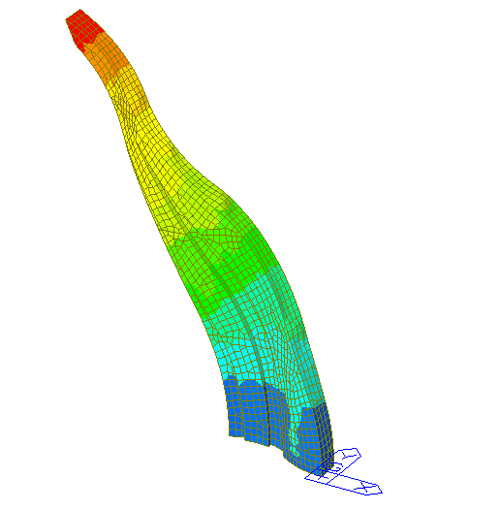

Displacement Review

-Analysis Subject: Shaping Material (Height: 6m)

-Purpose of Analysis : Calculate local stress value of shaping material, review lug location and rod and optimize stiffener installation distance.

-Type of Analysis : Linear Static Analysis

-Component Material : STEEL(SS400) Stainless Steel(STS304)

-Analysis Tool : Midas GEN + Midas NFX
